Winches

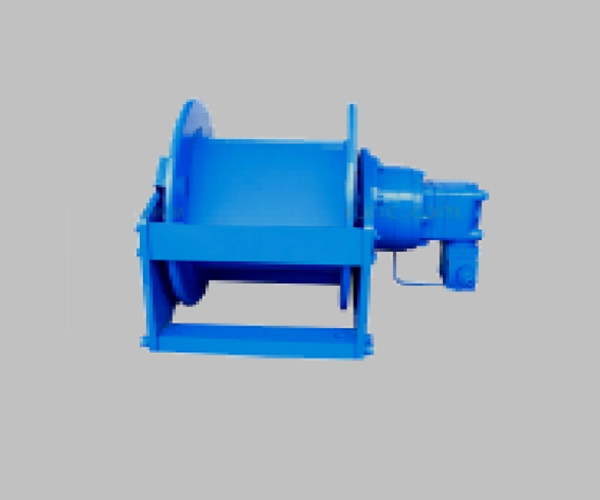

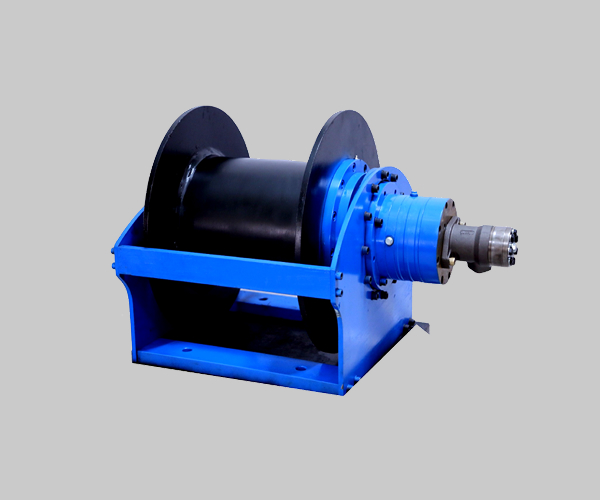

Winch

The winches work on simple planetary principle. Hydraulic winches are with inbuilt hydraulic brake. Winches can be supplied input with electrical or DC Motor.
  • Line Pull : 250 Kgs - 15000 Kgs
  • Transmission : Thru Planetary or Worm
  • Drum Diameter: 100mm - 650mm
  • Line Speed: as per customer specification
  • Right angle version : Worm planetary, Bevel planetary, Helical planetary

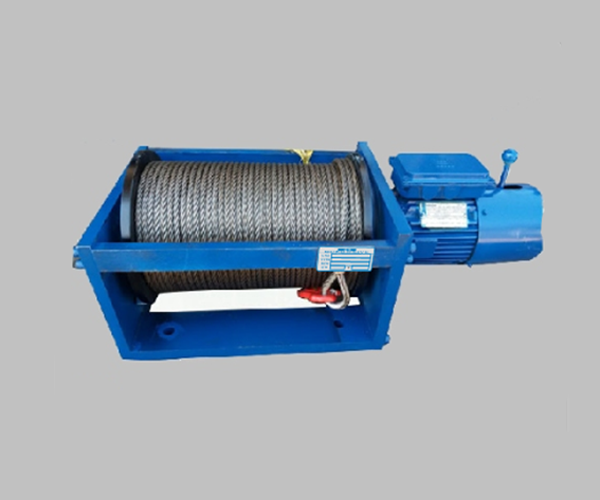

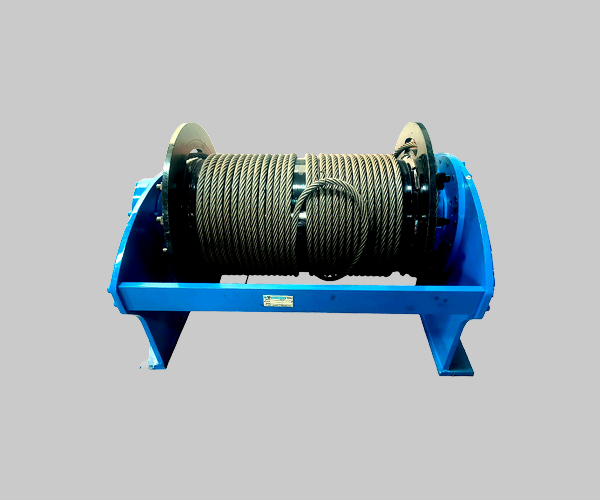

Electric Winch

Application : Hoist, Gantry Cranes, Tower Cranes, Overhead Cranes, pulling and many more...
  • Line Pull : 250 Kgs – 15000 Kgs
  • Transmission : Thru Planetary or Worm
  • Motor : Electric motor with Electromagnetic Brake DC motor
  • Winch Drum: Single or Double Drum

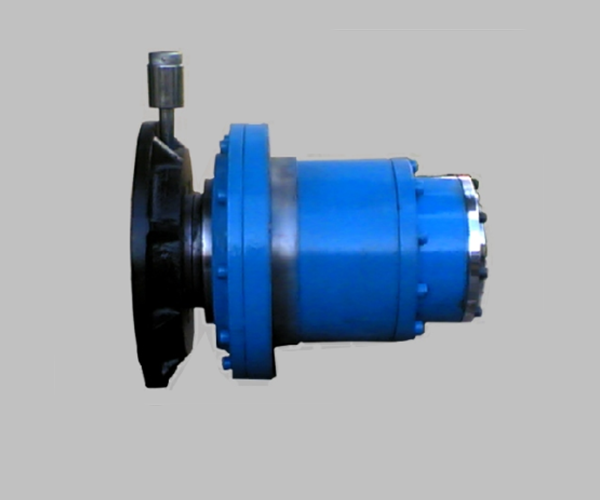

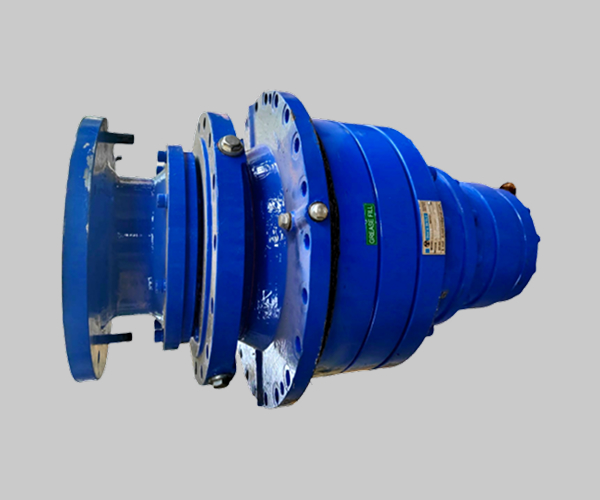

Planetary Drum Drive

Unique, safe, designed planetary drive with the ring gear rotating. These totally enclosed inside the drum .With stands high impact loads and shock loads, very high intermittent operations. This are replacing with the huge helical gearbox.
  • Ratio : 3.46 onwards
  • Drum Diameter : 130 onwards
  • Input : suitable for Electric motor
    Inbuilt with Hydraulic brake and Hydraulic motor
