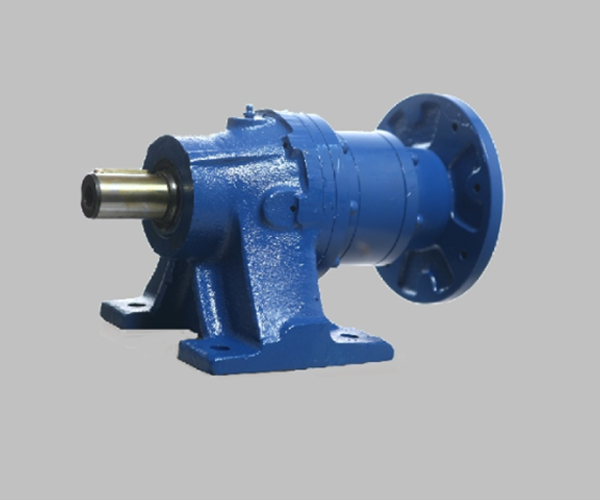

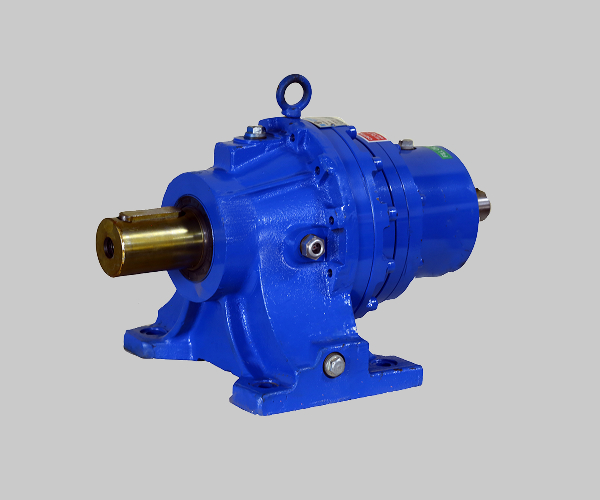

Compact, Study, multiple planet mashing allows power transmission through several path yet extemely powerful high torque transmission & ultimately smaller design, make ideal for sever duty application where shocks & impact are more
Ratio : 3.26onwards
Torque : 25000Kgm
Input Power : Electricmotor-0.25HP-150HP,hydraulic motor, Servo motor Free input (solid shaft)
Mounting : foot, flange, agitator and special
Output shaft : Solid/Hollow shaft with key way ,Solid/Hollow spline shaft
,Shrink disk with Torque arm
Right angle version : Worm planetary, Bevel planetary, Helical planetary

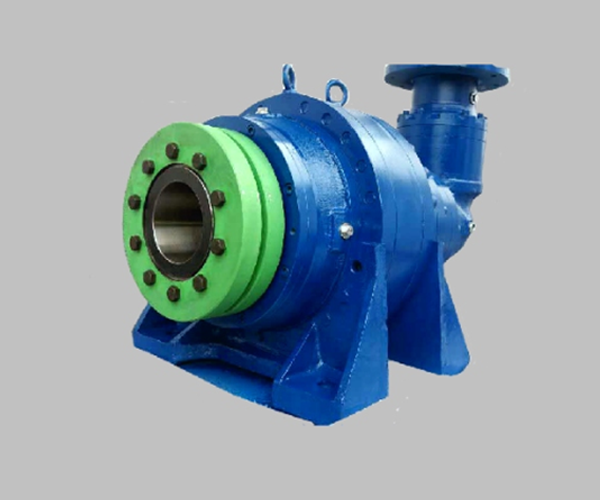

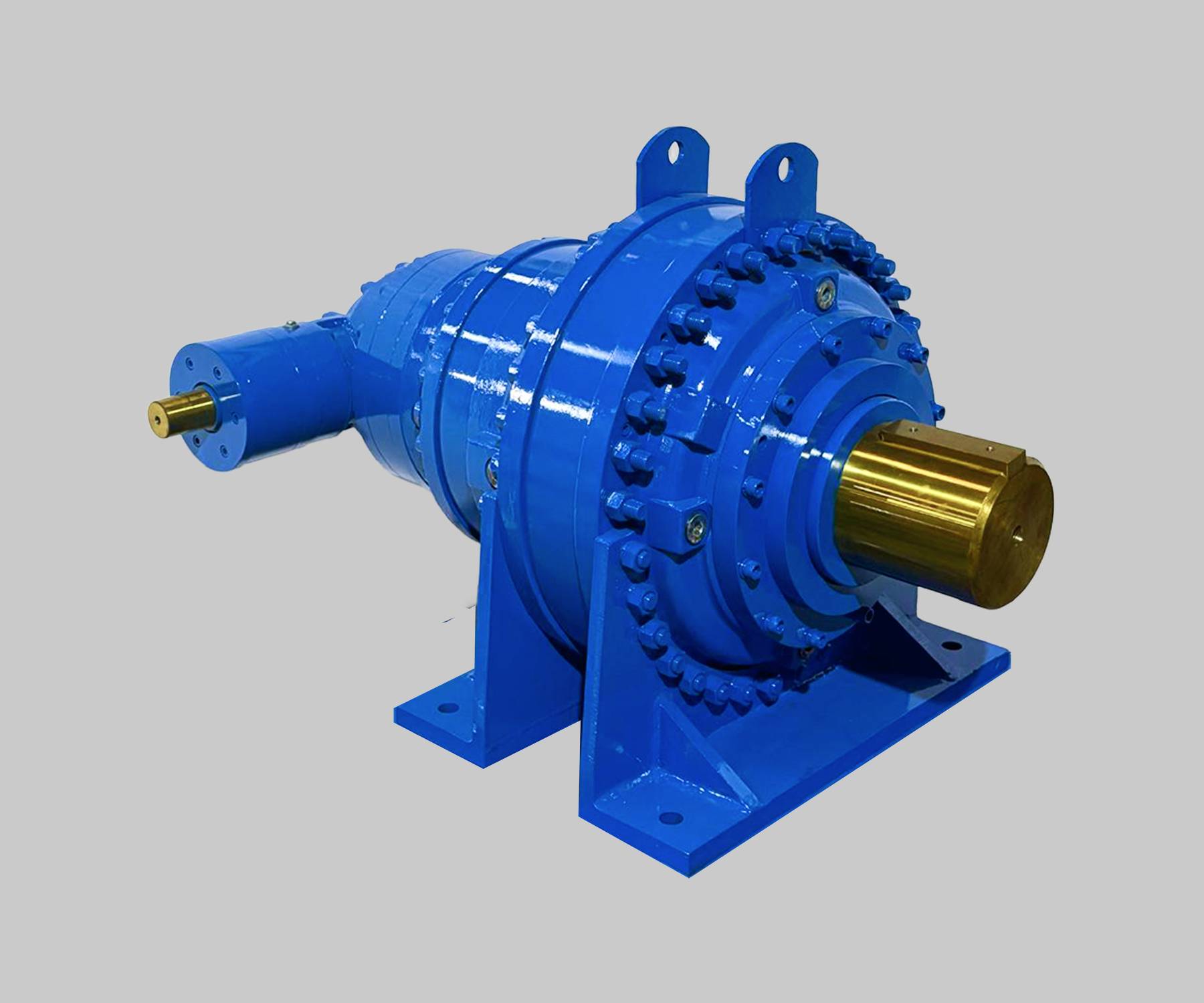

Bevel + Planetary Drive
Mainly used for the application where there is space constrain and
90 Degree power transmission required. This have wide application in steel mills, Sugar industries, concrete batch plants and many more.
Ratio : 12 onwards
Power : 0.5 hp – 60 Hp
Mounting : Foot, Flange, Agitator and Special
Torque : 25000 Kgm

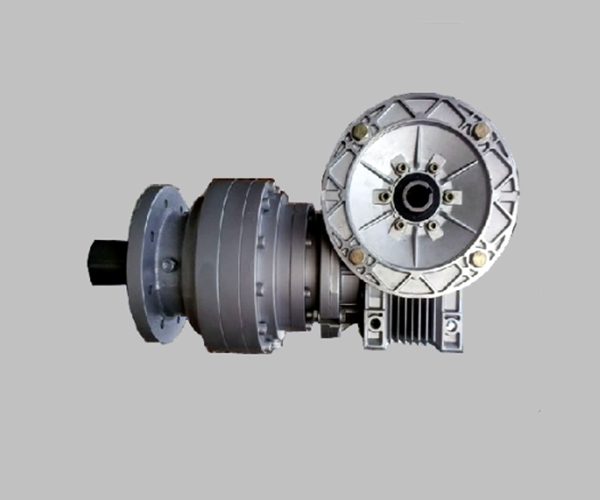

Worm + Planetary Drive
These is combination of worm and planetary with 90 degree power transmission, high reduction, self locking and compact. This are applicable in welding positioners, Welding fixtures, lifting and material handlingapplication.
Ratio : 30 – 90000 :1
Torque : 0.25 hp – 15 Hp
Mounting : Foot ,Flange, Agitator and Special
Torque : 25000 Kgm

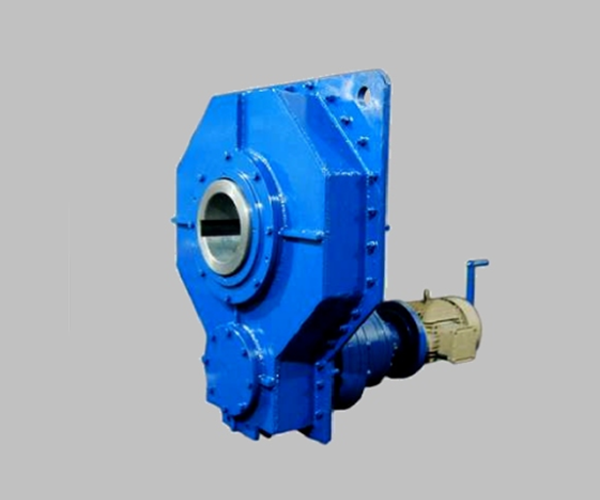

Planetary + Helical Drive
This are shaft mounted gearboxes this are directly mounted on the Equipment shaft which has to be driven, provided with torque arm to protect the gearbox from the overload.Widely used in sugar industries power plants ,minings and many more.
Ratio Power: 30 on wards
Mounting : 1 hp – 20 hp
Output Shaft : Shaft mounted with torque arm
: Hollow with the Key
