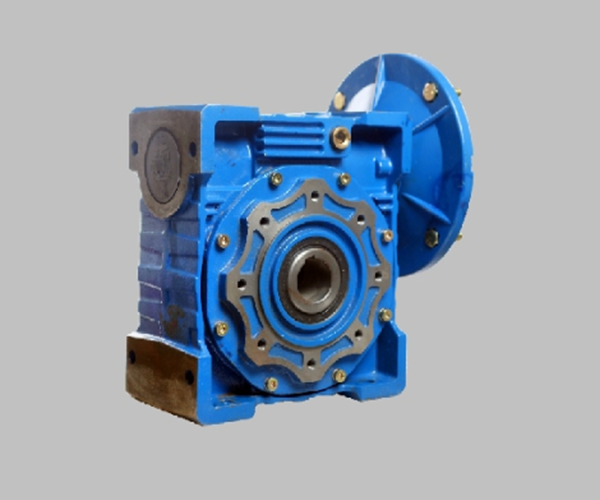

WORM SPEED REDUCER
DDW Series worm speed reducer is an INDIAN PRODUCT developed indigenously and Manufactured according to the International Standard.- Centre Distance : upto 150mm
- Ratio : 7.5:1 - 100:1
- Torque : upto 250Kgm
- Input Power : 0.16HP - 7.5 HP
- Mounting : Universal mounting
- Output shaft : Hollow 14mm - 50mm Plug in solid shaft

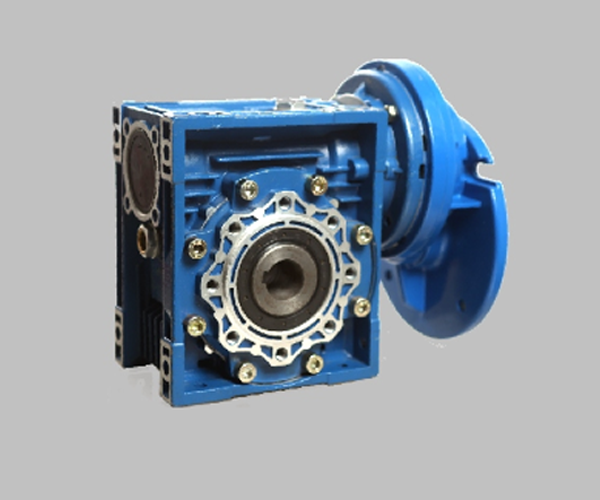

Heli-Worm speed reducer
It's a combination of helical and worm to achieve more reduction ratio.- Centre Distance : upto 150mm
- Ratio : 7.5:1 - 300:1
- Torque : upto 250Kgm
- Input Power : 0.16HP - 7.5 HP
- Mounting : Universal mounting
- Output shaft : Hollow 14mm - 50mm Plug in solid shaft
Double Worm speed reducer
It's a combination of helical and worm to achieve more reduction ratio.- Centre Distance : upto 150mm
- Ratio : 100:1 - 5000:1
- Torque : upto 250Kgm
- Input Power : 0.16HP - 7.5 HP
- Mounting : Universal mounting
- Output shaft : Hollow 14mm - 50mm Plug in solid shaft

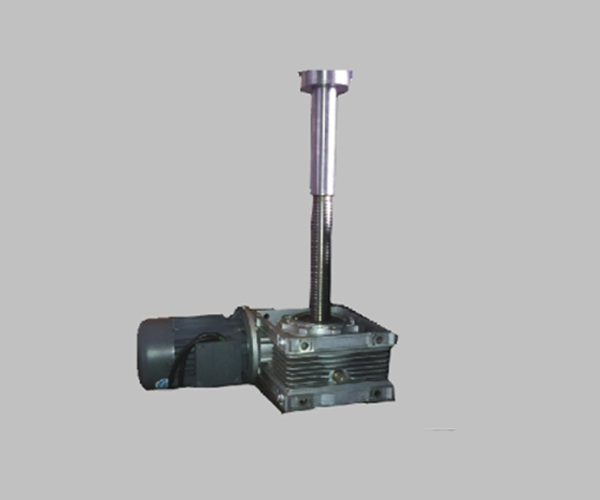

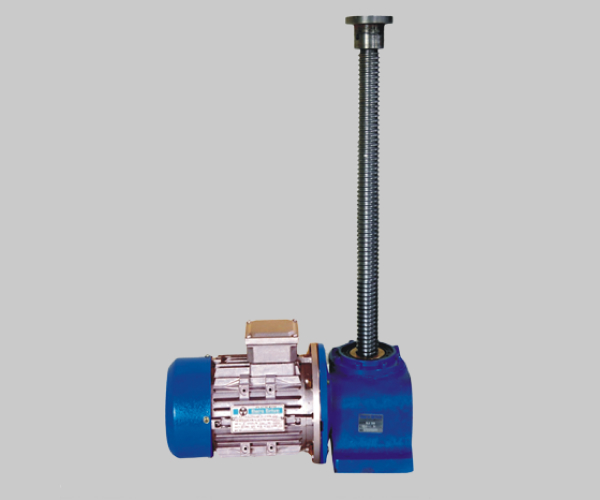

Worm screw jack
This are commonly used in lifting application, This are manufactured as per customer requirement lifting capacity, Stoke length, Stroke speed .With lead screw.Wide Application in Printing machine ,SPMS ,Polishing machines ,Bail pressing machines ,wire cutting machines ,Dam gate open and closing and many more- Centre Distance : 30 mm – 150 mm
- Stroke Length : as per customer spec
- Capacity : 250 kgs -200 T
- Input Power : hollow input to suit electric motor Input solid shaft for manual
